Specifikationstabell

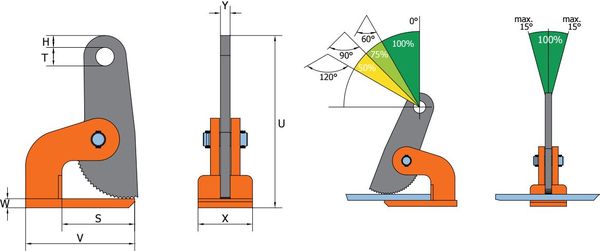

pewag peCLAMP HXW / HSXW | Code / Type | Load capacity [kg/pair] |
Jaw opening R [mm] |
H [mm] |
S [mm] |
T [mm] |
U [mm] |
V [mm] |
W [mm] |
X [mm] |
Y [mm] |
weight [kg/pc.] |
---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
HXW | ||||||||||||
LXHXW 1 t | 1.000 | 0-35 | 11,50 | 99 | 25 | 188 | 140 | 10 | 65 | 15 | 2,60 | |
LXHXW 2 t | 2.000 | 0-60 | 19,50 | 118 | 30,50 | 287 | 180 | 15 | 90 | 16 | 7,00 | |
LXHXW 3 t | 3.000 | 0-60 | 19,50 | 118 | 30,50 | 291 | 180 | 20 | 90 | 16 | 8,00 | |
LXHXW 4 t | 4.000 | 0-60 | 19,50 | 145 | 30,50 | 304 | 220 | 25 | 105 | 20 | 13,00 | |
LXHXW 6 t | 6.000 | 0-60 | 19,50 | 145 | 30,50 | 307 | 220 | 25 | 110 | 20 | 14,00 | |
LXHXW 8 t | 8.000 | 0-60 | 19,50 | 135 | 30,50 | 336 | 225 | 35 | 120 | 30 | 19,00 | |
LXHXW 10 t | 10.000 | 0-60 | 19,50 | 135 | 30,50 | 336 | 225 | 35 | 120 | 30 | 19,00 | |
LXHXW 12 t | 12.000 | 0-60 | 19,50 | 135 | 30,50 | 336 | 225 | 35 | 120 | 30 | 19,00 | |
LXHXW 15 t | 15.000 | 0-60 | 21,50 | 147 | 43 | 344 | 262 | 35 | 160 | 35 | 30,00 | |
LXHXW 25 t | 25.000 | 0-60 | 21,50 | 147 | 43 | 349 | 262 | 40 | 175 | 35 | 33,00 | |
LXHSXW | ||||||||||||
LXHSXW 2 t | 2.000 | 0-100 | 19,50 | 120 | 30,50 | 383 | 180 | 15 | 90 | 15 | 9,20 | |
LXHSXW 3 t | 3.000 | 0-100 | 19,50 | 120 | 30,50 | 387 | 180 | 20 | 90 | 15 | 10,00 | |
LXHSXW 4 t | 4.000 | 0-100 | 19,50 | 145 | 30,50 | 414 | 220 | 25 | 105 | 20 | 15,00 | |
LXHSXW 6 t | 6.000 | 0-100 | 19,50 | 145 | 30,50 | 414 | 220 | 25 | 120 | 20 | 16,50 | |
LXHSXW 8 t | 8.000 | 0-100 | 19,50 | 135 | 30,50 | 428 | 225 | 35 | 120 | 30 | 21,00 | |
LXHSXW 10 t | 10.000 | 0-100 | 19,50 | 135 | 30,50 | 428 | 225 | 35 | 120 | 30 | 22,00 | |
LXHSXW 12 t | 12.000 | 0-100 | 19,50 | 135 | 30,50 | 428 | 225 | 35 | 120 | 30 | 22,00 | |
LXHSXW 15 t | 15.000 | 0-150 | 27,50 | 240 | 45 | 665 | 350 | 35 | 140 | 35 | 53,00 |
